Servo Digital A81BMWP, Advanced Ultra High Torque 55KG 0.087Sec, Waterproof IP67, Steel Gears, Brushless With Programmable Function

$135.10

In stock

Qty
SKU: A81BMWP Category:

Description

This new standard case 55kg servo A81BMWP is a PRO version A81BHMW, keeping the same size but with superb powerful motor, suitable for the professional competition drivers who pursue the ultimate and extreme, or for the project engineer with limit budget but with high quality request.
Full aluminium case and structure, hardened steel gears and the advanced motor, excellent linearity and precision control. All these optimized to allow the servo produce 55KG 0.087Sec spec at 8.4V regular voltage. The servo is particularly suitable for large RC boats, cars, aircraft and other demanding applications with an emphasis on high thrust and accuracy. Super-fast response of the control electronics and high long-term durability.
Withstands immersion in water to a depth of 1 m for a 30-minute test run. It is suitable for off-road models’ cars, boats and submarines – simply for places exposed to the effects of dust and moisture, with high demands on the tensile strength and overall mechanical resistance of the servo.

Features:
Full CNC Aluminium Shell
High Efficiency Long Lifespan Brushless Motor
Smooth 3 Ball Bearings
High Precision Steel Gears & Structure
IP67 Waterproof & Dust Proof
Built-in Magnetic Sensor
High Reliability Standard Digital Servo

Specifications:
Operating Voltage: 4.8-8.4 V
Operating speed: 0.125sec/60° @ 6.0V
Operating speed: 0.100sec/60° @ 7.4V
Operating speed: 0.087sec/60° @ 8.4V
Stall Torque: 39 kg-cm (542 oz-in) @ 6.0V
Stall Torque: 48 kg-cm (667 oz-in) @ 7.4V
Stall Torque: 55 kg-cm (764 oz-in) @ 8.4V
Gear: Steel
Motor: BLS

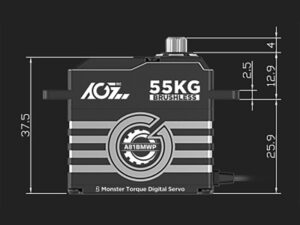

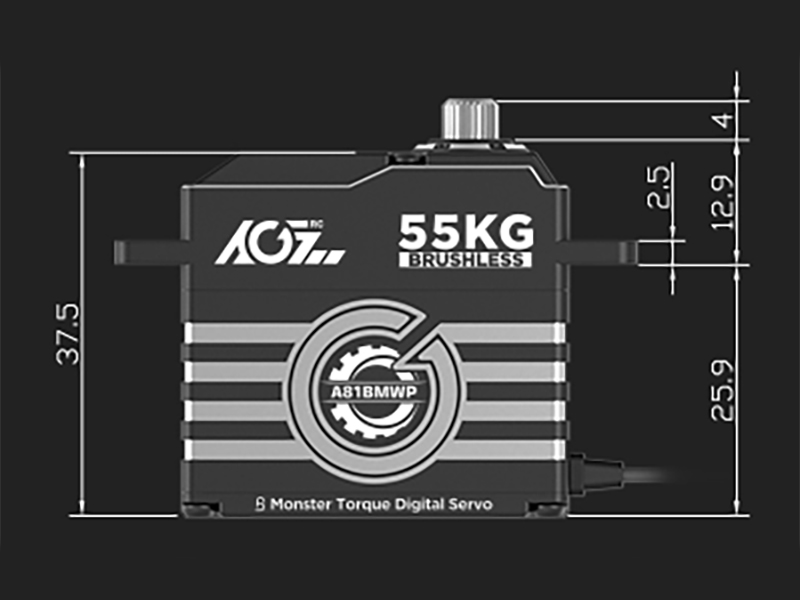

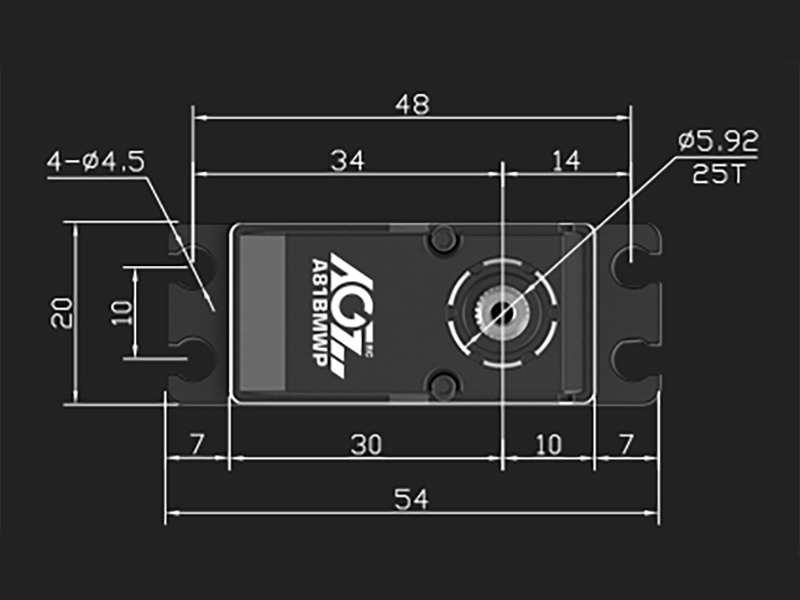

Size: 40*20*37.5mm (1.57 x 0.78 x 1.46 in)
Weight: 83g
Connector Wire: TYU 300 mm / 22AWG

Accessories:
1 x aluminium single sided servo horn
1 x single sided servo horn
1 x double sided servo horn
4 x rubber grommets with inserts
4 x mounting screws
1 x mounting bolt 3 x 8 mm for servo horn installation on the ball raced output shaft with 25T-spline drive
